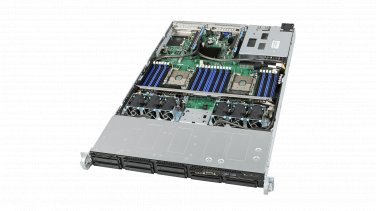

Intel Nemko R1208WTTGSR 1U Rackmount Server R1000 Mar 2016 - R1208WTTGSR
Brand Intel
Model R1208WTTGSR
System Type Rack
Rack Height 1U
Processor
CPU Socket LGA 2011-3
CPU Features Support Intel Xeon Processor E5-2600 v4 Family
# of Processors Installed 0
MAX Processors 2
Memory
Memory Type DDR4-1600 / 1866 / 2133 / 2400
RAM Slots 24
Max Memory Capacity 1.54 TB
Networking
LAN Ports 2 x 10GbE
Expansion & Ports
Other ports # of USB Ports: 8
Total # of SATA Ports: 10
Power Characteristics 750W
Server Board: S2600WTTR
Product Family: Intel Server System R1000WT Family
Code Name: Products formerly Wildcat Pass
Launch Date: Q1'16
Limited 3-year Warranty
Yes
Extended Warranty Available for Purchase (Select Countries)
Yes
Additional Extended Warranty Details
Dual Processor System Extended Warranty
Chassis Form Factor
1U, Spread Core Rack
Chassis Dimensions
16.93" x 27.95" x 1.72"
Board Form Factor
Custom 16.7" x 17"
Rack Rails Included
No
Compatible Product Series
Intel Xeon Processor E5-2600 v4 Family
Socket
Socket R3
TDP
145 W
Heat Sink
2
Heat Sink Included
Yes
System Board
Intel Server Board S2600WTTR
Board Chipset
Intel C612 Chipset
Target Market
Cloud/Datacenter
Rack-Friendly Board
Yes
Power Supply
750 W
Power Supply Type
AC
# of Power Supply Included
1
Redundant Fans
Yes
Redundant Power Supported
Supported, requires additional power supply
Backplanes
Description
Integrated 1U system featuring Intel Server Board S2600WTTR supporting eight 2.5 inch hot-swap drives, dual 10-GbE LAN, 24 DIMMs, one 750W redundant-capable power supply, enterprise class I/O, with built in discrete management network interface.
Memory & Storage
Memory Types
DDR4-1600/1866/2133/2400
# of Memory Slots
24
Max Memory Size (dependent on memory type)
1.5 TB
# of Front Drives Supported
8
Front Drive Form Factor
Hot-swap 2.5"
GPU Specifications
Integrated Graphics ‡
Yes
Expansion Options
PCIe x16 Gen 3
2
Connector for Intel I/O Expansion Module x8 Gen 3
1
Connector for Intel Integrated RAID Module
1
I/O Specifications
# of USB Ports
8
Total # of SATA Ports
10
RAID Configuration
SW RAID 0, 1, 10, optional 5
# of Serial Ports
2
Integrated LAN
2x 10GbE
# of LAN Ports
2
Optical Drive Support
Yes
Integrated SAS Ports
0
Embedded USB (eUSB) Solid State Drive Option
Yes
Integrated InfiniBand*
No
Package Specifications
Max CPU Configuration
2
Advanced Technologies
Intel Remote Management Module Support
Yes
Integrated BMC with IPMI
IPMI 2.0 with OEM extensions
Intel Node Manager
Yes
Intel On-Demand Redundant Power
Yes
Intel Advanced Management Technology
Yes
Intel Server Customization Technology
Yes
Intel Build Assurance Technology
Yes
Intel Efficient Power Technology
Yes
Intel Quiet Thermal Technology
Yes
Intel Virtualization Technology for Directed I/O (VT-d) ‡
Yes
Intel Matrix Storage Technology
No
Intel Rapid Storage Technology
No
Intel Rapid Storage Technology enterprise
Yes
Intel Quiet System Technology
Yes
Intel Fast Memory Access
Yes
Intel Flex Memory Access
Yes
Intel I/O Acceleration Technology
Yes
TPM Version
1.2/2.0
ECCN (US): 5A992.c
HTS: 8473.30.11.80
Other Descriptors:
- TA NO: J11481-002
- CPR-R1000(A)
- G19891-008
Condition: Unit is pulled from working environment and otherwise untested.
Unit only. Item comes with no other accessories.
Images for reference only. Images may differ from actual product.
Item for sale is not a kit. Single unit only. Does not come in original box or with any accessories.
Item is sold as-is. All sales are final. No returns are accepted on this Clearance Item. Seller not responsible for compatibility, performance, or descriptive issues. Any warranties handled through manufacturer.
Location: ESBFloor
