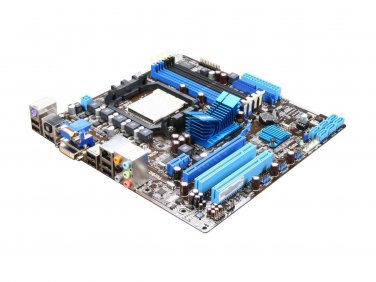

Asus M4A785-M AM2+/AM3 motherboard - M4A785-M
Currently has AMD Athlon II X2 240 CPU installed (available for separate purchase).
ASUS does it again with the M4A785-M AMD 785G motherboard!
Take advantage of the powerful multi-core AMD Phenom II and Athlon II processors with this board's AM3 socket. You'll also have access to the most powerful and fastest video processing around when you install a discrete ATI video card that will work in conjunction with the onboard GPU for a unique Hybrid CrossFireX configuration. You'll also appreciate the HyperTransport 3.0 technology, which radically improves overall system efficiency.
ASUS is an industry leader known for making innovative and reliable motherboards. Bring home the experience and craftsmanship and build your next system in confidence today!
Socket AM3 Processor Support
The ASUS M4A785-M supports the latest-generation AMD Socket AM3 processors including the AMD Phenom II X3 and AMD Phenom II X4 processor, as well as AM2 and AM2+ processors including the AMD Phenom, AMD Athlon and AMD Sempron series.
ATI Hybrid Graphics Technology Support
Based on ATI CrossFireX multi-GPU technology, ATI Hybrid Graphics allows you to combine the performance of the HD4200 integrated GPU with an applicable ATI Radeon graphics card to bring enhanced gaming performance, productivity and power efficiency.
HDMI Output
The ASUS M4A785-M features an HDMI output for connection to your high-definition video equipment. With the HDMI interface ensuring lossless transmission of high-quality HD video signals, play back HD contents on your computer and view them on your large HDTV set for more comfort.
Brand: Asus
Series: M4A785-M
Model: M4A785-M
P/N: M4A785-M
Supported CPUCPU Socket Type AM3/AM2+/AM2
CPU Type Athlon 64 / Athlon II / Phenom / Phenom II / Sempron
FSB 2600 MHz
ChipsetsChipset AMD 785G
South Bridge AMD SB710
MemoryNumber of Memory Slots 4x240pin
Memory Standard DDR2 1200(O.C.)/1066/800/667
Maximum Memory Supported 16GB
Expansion SlotsPCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage DevicesPATA 1 x ATA133 2 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
SATA RAID 0/1/10/JBOD
Onboard VideoOnboard Video Chipset ATI Radeon HD 4200
Onboard AudioAudio Chipset VIA VT1708S
Audio Channels 8 Channels
Onboard LANLAN Chipset Realtek 8112L
Max LAN Speed 1Gbps
Rear Panel PortsBack I/O Ports 1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 / 6 x Audio Jacks / 6 x USB 2.0/1.1
PS/2 1
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 1.1/2.0 6 x USB 2.0
S/PDIF Out 1 x Optical
Audio Ports 6 Ports
Internal I/O ConnectorsOnboard USB 3 x USB connectors supports additional 6 USB 2.0 ports
Physical SpecForm Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 24 Pin
FeaturesFeatures ASUS Unique Features ASUS 4+1 Phase Power Design
Module Qty: 1
Other Identifiers:
M4A785-M
A7M0AC183393
485B3938C8A7
10552207-0000177-MIBB10-A1E 0906
Condition: Unit is pulled from working system. Stored in anti-static bag. Otherwise untested.
Images for reference only. Images may differ from actual product.
Item for sale is not a kit. Single module only. Does not come in original box or with any accessories.
Item is sold as-is. All sales are final. No returns are accepted on this Clearance Item. Seller not responsible for compatibility, performance, or description issues. Any warranties handled through manufacturer.
Location: ESBTemp
