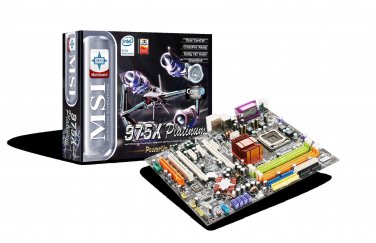

MSI 975X Platinum PowerUp Edition motherboard - MS-7246 v2.1
Brand: MSI
Series: 975X Platinum PowerUp Edition
Model: 975X Platinum PowerUp Edition
P/N: MSI-7246 Ver 2.1
Socket 775
Baseclock/Hyper Transport 533 / 800 / 1066
Chipset Intel® 975X + ICH7DH
DDR2 Memory DDR2 533 / 667 / 800
Memory Channel Dual
DIMM Slots 4
Max Memory (GB) 8
PCI-E x16 2
PCI-E Gen Gen1 (1x16, 1x8)
PCI-E x1 2
PCI 2
IDE 2
SATAII 4
RAID 0 / 1 / 0+1 / JBOD
USB 2.0 ports (Rear) 4
Serial ports (Rear) 1
Parallel ports (Rear) 1
Audio ports (Rear) 6
Form Factor ATX
CPU
• Supports Socket 775 for Intel® Core 2 Quad, Core 2 Duo, P4, P4EE, Pentium D, Pentium XE and Celeron D processors.
• Supports Intel® 05B/05A and 04B/04A processors.
• Supports 3/4-pin CPU fan pin-header with Fan Speed Control.
• Supports FSB 1066/800/533 MHz.
• Supports EIST technology.
• Supports Intel® Hyper-Threading technology.
• Supports Intel® Dual Core Technology up to 800MHz and up.
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
• Intel® 975X Chipset
- Supports FSB 533/800/1066MHz.
- 2 PCI Express controllers in the MCH enable either 1 x 16 or 2 x 8 operation.
- Supports dual channel, DDR2 533/667/800.
• Intel® ICH7DH Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports.
- 4 SATAII ports with transfer rate up to 3Gb/s.
- 1 channel Ultra ATA 100 bus master IDE controller.
- PCI Master v2.3, I/O APIC.
- ACPI 2.0 compliant.
- Serial ATA RAID 0, RAID 1 and RAID 0+1.
- Integrated AHCI controller.
Main Memory
• Supports four unbuffered DIMM of 1.8 Volt DDRII DRAM
• Supports up to 8GB memory size.
• Supports dual channel DDRII memory architecture.
• Supports DDR2 533/667/800 memory interface.
Slots
• Two PCI Express x16 slot. (supports PCI Express Bus specification v1.0a compliant)
- Supports into 2 x8 slot.
- Supports ATI® Crossfire™ technology.
• Two PCI Express x1 slots. (support PCI Express Bus specification v1.0a compliant)
• Two 32-bit v2.3 master PCI bus slots.
- One orange slot which supports 2 masters for MSI special PCI function card (ex. wireless LAN and bluebooth combo card).
- Support 3.3v/5v PCI bus interface.
On-Board IDE/SATA
• One Ultra DMA 66/100 IDE controllers integrated in ICH7DH and JMicron® JMB361.
- Supports PIO, Bus Master operation modes.
- Can connect up to four Ultra ATA drives.
• SATAII controller integrated in ICH7DH
- Up to 3Gb/s transfer speed.
- Can connect up to four SATAII devices.
- Supports AHCI controller with SATA RAID 0, RAID 1 and RAID 0+1 (ICH7DH).
• JMicron® JMB361 chipset
- Supports RAID 0, RAID 1 and JBOD. (SATA 5 and IDE2)
Audio
• Chip integrated by Realtek® AL882M
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 spec.
LAN
• Supports PCI Express LAN 10/100/1000 Fast Ethernet by Intel 82573L
IEEE1394
• VIA® 6308P chipset
- Supports up to two 1394 ports. (Rear panel x1, pinheader x1)
- Transfer rate is up to 400Mbps.
Internal I/O Connectors
- ATX 24-Pin power connector
- ATX 4-pin VGA power connector
- 8-pin ATX 12V power connector
- CPU / System / NB FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x D-Bracket 2 pinheader
- 1 x IEEE1394 connector support additional 1 ports
- 2 x USB 2.0 connector support additional 4 ports
- 1 x Floppy disk drive connector
- 5 x Serial ATAII connectors
- 2 x ATA133 HD connectors
Back Panel I/O Ports
- 1 x Parallel port
- 1 x Serial port (COM 1)
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x Coaxial SPDIF out
- 1 x 6 in 1 audio jack (S/SPDIF out)
- 1 x IEEE1394 port
- 4 x USB 2.0 ports
- 1 x RJ45 LAN jack
BIOS
• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and
expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your
motherboard specifications.
Dimension
• 30.4cm(L) x 24.5cm(W) ATX Form Factor
Mounting
• 9 mounting holes.
UPC: 816909035759
EAN: 4719072038694
Condition: Unit is pulled from working system and stored in anti-static bag. Not otherwise tested.
Comes with accessories: I/O shield + USB daughter bracket
