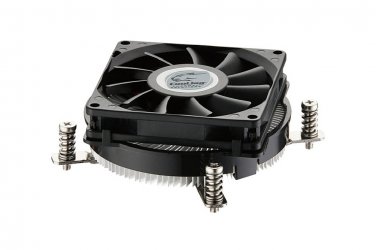

CoolJag LGA-1366 / 1356 / 115x Heatsink/Fan Slim-line / Low-Profile - BOS-D, JYC8L05AGC-C
Model: BOS-D
Part Number: JYC8L05AGC-C
CPU Socket Types: LGA-1366 / 1356 / 1151 / 1150 / 1155 / 1156
Compatibility: Xeon / i7 / i5 / i3
Max CPU Power: 65 Watts
Model # BOS-D
· Application : For Intel Core i7, i5, i3, Core 2 Duo & Pentium 4 Socket 1366/1356/1156/1155/775
· Dimensions : 123.64 mm (L) x 123.64 mm (W) x 37 mm (H)
· Materials : AL + Copper Core
· Weight: 343 g
· PWM Function: YES
· Thermal Grease: Dow Corning SC102
· Backplate: 1156A
Fan Specifications:
· Fan size: 80x80x15mm
· Fan voltage: 12V
· Bearing: Dual Ball bearing
· Fan speed: 1200~ 4200 rpm
· Noise Level: 21~39.9 dBA
· Air Flow: 13.31~46.57 CFM
· Power : 1.2~ 6 W
· Static pressure : 0.33~3.99 mmH2O
· Fan connector: 4-pin
· Lead wire: UL1061 #26AWG or equivalent
· Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
Condition: Unit is NEW-in-Box.
Images for reference only. Images may differ from actual product.
Item for sale is not a kit. Single module only.
Item is sold as-is. All sales are final. No returns are accepted on this Clearance Item. Seller not responsible for compatibility issues. Any Warranties handled through manufacturer.
Location: ESB5
