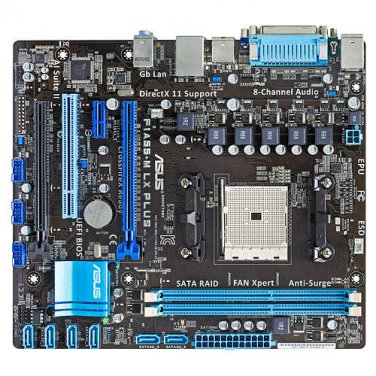

Asus F1A55-M LX PLUS motherboard - F1A55-M LX PLUS
A4-3400 APU available for separate purchase. See other listing.
Brand: Asus
Model: F1A55-M LX PLUS
P/N: F1A55-M LX PLUS
CPU
AMD Socket FM1 A- Series/E2- Series Accelerated Processors
Chipset
AMD A55 FCH (Hudson D2)
Memory
2 x DIMM, Max. 32GB, DDR3 2250(O.C.)/1866/1600/1333/1066 MHz Memory
Dual Channel Memory Architecture
* The Max. 32GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated AMD Radeon™ HD 6000 Series Graphics in Llano APU
VGA output support : RGB port
- Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
Supports DirectX 11
Expansion Slots
1 x PCIe 2.0 x16 (blue)
1 x PCIe 2.0 x16 (x4 mode, black)
1 x PCIe 2.0 x1
1 x PCI
Storage
AMD A55 FCH (Hudson D2) chipset :
6 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 10, JBOD
LAN
Realtek® 8111E , 1 x Gigabit LAN Controller(s)
Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
USB Ports
AMD A55 FCH (Hudson D2) chipset :
12 x USB 2.0 port(s) (6 at back panel, black, 6 at mid-board)
ROG Exclusive Features
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
ASUS Power Design :
- 4 +1 Phase Power Design
ASUS Protect 3.0 Technology :
- Anti-Surge Protection
- Low EMI Solution
- ESD
ASUS Exclusive Features :
- AI Suite II
- Ai Charger
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x LAN (RJ45) port(s)
6 x USB 2.0
1 x COM port(s)
1 x Parallel port(s)
3 x Audio jack(s)
Internal I/O Ports
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
6 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
BIOS
32 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.6, ACPI V2.0a
Support Disc
Form Factor
uATX Form Factor
9.6 inch x 8.4 inch ( 24.4 cm x 21.3 cm )
Module Qty: 1
UPC: 610839187188
Accessories: I/O shield.
Condition: Unit was pulled from a working system but is otherwise untested. Stored in anti-static container. This Clearance Item is sold as-is. All sales are final. No returns are accepted on this Clearance Item.
Images for reference only. Images may differ from actual product.
Item for sale is not a kit. Single module only. Does not come in original box or with any other accessories.
Item is sold as-is. All sales are final. No returns are accepted on this Clearance Item. Seller not responsible for compatibility, performance, or description issues. Any warranties handled through manufacturer.
Location: ESB1
