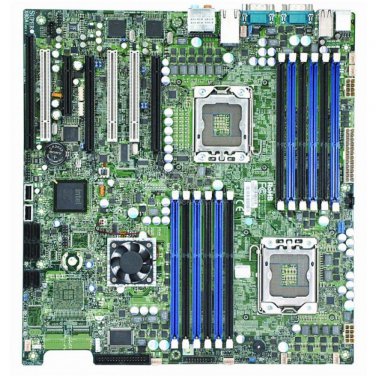

Supermicro X8DAI-B Server Motherboard
Also available Xeon X5660 & E5502 CPUs. See other listings.
Model: Supermicro X8DAI-B
Brand: Supermicro
Model: X8DAI-B
P/N: X8DAI-B-IN001 v1.31
CPU
Dual 1366-pin LGA Sockets
Supports up to two Intel Xeon Processor 5600 / 5500 Series (Westmere / Nehalem-EP)
QPI
up to 6.4 GT/s
System Memory
12x 240-pin DIMM sockets
192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
Memory Mirroring supported
Memory Type
1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
1GB, 2GB, 4GB , 8GB , 16GB
Memory Voltage
1.5 V / 1.35V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
Chipset
Intel® 5520 (Tylersburg) chipset
ICH10R + IOH-36D
SATA
Intel ICH10R SATA 3.0Gbps Controller
RAID 0, 1, 5, 10 support (Windows)
RAID 0, 1, 10 support (Linux)
IPMI
Support for Intelligent Platform Management Interface v.2.0 / 1.5
200-pin IPMI slot (SIMLC)
(Optional: AOC-SIMLC)
Network Controllers
Intel® 82573V & 82573L Gigabit Ethernet Controller
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio
Realtek ALC883 7.1 HD audio
Super I/O
Winbond 83627HF chip
Expansion Slots
PCI-Express
2 (x16) PCI-E 2.0 slots
1 (x4) PCI-E (in x8 slot)
PCI
3x 33MHz PCI slots
Serial ATA
Six Serial ATA ports
Six SATA hard drives supported
Floppy
1 Floppy controller; 1.44 MB
LAN
2x RJ45 LAN ports
USB
4x USB rear ports
2x USB on-board
4x USB internal headers
Total 9 USB 2.0 Compliant
Audio
Realtek ALC883 7.1 HD audio
Keyboard / Mouse
PS/2 keyboard and mouse ports
Serial Port
2 Fast UART 16550 serial ports
Firewire
2x IEEE 1394a headers
Form Factor
Extended ATX
Unit was pulled from a working system. This Clearance Item is sold as-is. All sales are final. No returns are accepted on this Clearance Item.
Pictures for reference only. Unit does not come with original box or other accessories.
Location: ESB1
